1N5908 Zener Transient Voltage Suppressors

MOTOROLA SEMICONDUCTOR TECHNICAL DATA 1500 Watt MOSORB GENERAL DATA APPLICABLE TO ALL SERIES IN THIS GROUP Zener Transient Voltage Suppressors Unidirectional and Bidirectional Mosorb devices are designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. These devices are Motorola’s exclusive, cost-effective, highly reliable Surmetic axial leaded package an.

1N5908 Features

* Standard Voltage Range

* 6.2 to 250 V

* Peak Power

* 1500 Watts @ 1 ms

* Maximum Clamp Voltage @ Peak Pulse Current

* Low Leakage < 5 µA Above 10 V

* UL Recognition

* Response Time is Typically < 1 ns Mechanical Characteristics: CASE

1N5908 Datasheet (50.44 KB)

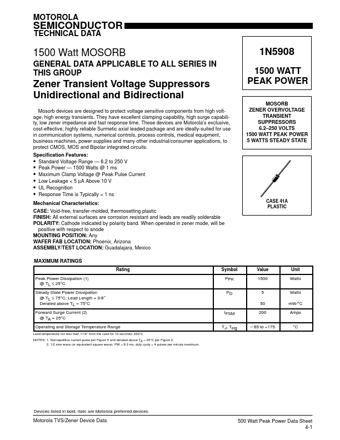

1N5908 Datasheet Preview — Preview of 1N5908 PDF

Datasheet Details

Part number:

1N5908

Manufacturer:

Motorola

File Size:

50.44 KB

Description:

Zener transient voltage suppressors.
