1N941B Datasheet - Motorola

1N941B ZENER REFERENCE DIODE

@ MOTOROLA IN941,A,B thru IN945,A,B ])p!-ii~'n.PI !-i I ) a t a S h p p t TEMPERATURE-COMPENSATED ZENER REFERENCE DIODES Temperature-compensated zener reference diodes utilizing an oxide-passivated junction for long-term voltage stability. A rugged, glass-enclosed, hermetically sealed structure. Designer's Data for "Worst Case" Conditions The Designers Data Sheet permits the design of most circuits entirely from the information presented. Limit data - representing device characteristic bou.

1N941B Datasheet (241.29 KB)

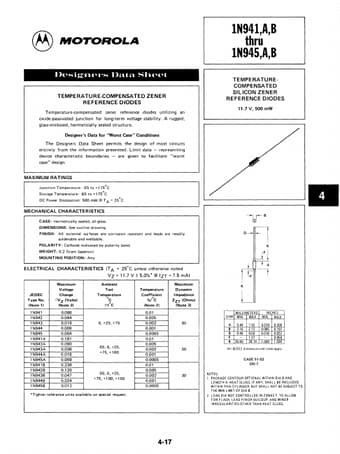

Preview of 1N941B PDF
1N941B Datasheet Preview Page 2 1N941B Datasheet Preview Page 3

Datasheet Details

Part number:

1N941B

Manufacturer:

Motorola

File Size:

241.29 KB

Description:

Zener reference diode.
