1N964, 1N957 Datasheet - Motorola

1N964 Diode

lN9S7 thru lN992 CASE 51 (00-7) Hermetically sealed, all-glass case with all external surfaces corrosion resistant. Cathode end, indicated by color band, will be positive with respect to anode end when operated in the zener region. MAXIMUM RATINGS Junction and Storage Temperature: -65°C to +175°C D C Power Dissipation: 400 Milliwatts at 50°C Ambient (Derate 3.2 mW;oC Above 50°C Ambient) TOLERANCE DESIGNATIONS With no suffix, tolerance is ±20%, for ±10% units, add suffix A, for ±5% units, add .

1N957-Motorola.pdf

This datasheet PDF includes multiple part numbers: 1N964, 1N957. Please refer to the document for exact specifications by model.

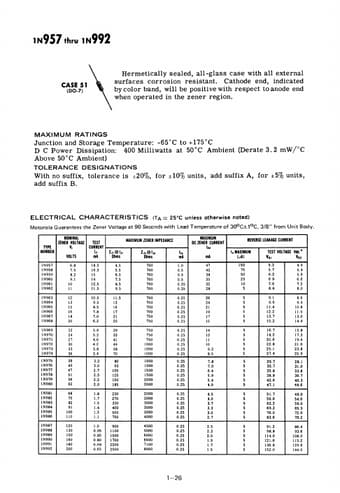

1N964 Datasheet Preview Page 2

Datasheet Details

Part number:

1N964, 1N957

Manufacturer:

Motorola

File Size:

98.95 KB

Description:

Diode.

Note:

This datasheet PDF includes multiple part numbers: 1N964, 1N957.
Please refer to the document for exact specifications by model.
