2N1021 Datasheet - Motorola

2N1021-Motorola.pdf

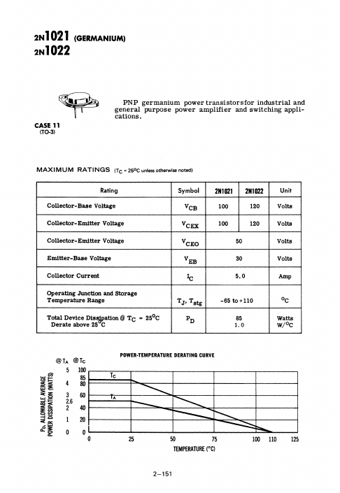

Preview of 2N1021 PDF
2N1021 Datasheet Preview Page 2

Datasheet Details

Part number:

2N1021

Manufacturer:

Motorola

File Size:

88.31 KB

Description:

Pnp germanium powertransistorsfor.

2N1021, PNP germanium powertransistorsfor

1021 2N (GERMANIUM) 2Nl022 CASE 11 (TO-3) PNP germanium powertransistorsfor industrial and general purpose power amplifier and switching appli- cations.

MAXIMUM RATINGS (TC =250C unless otherwise noted) Rating Collector-Base Voltage Collector-Emitter Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Operating Junction and storage Temperature Range Total Device Diss~ation @ TC = 250 C Derate above 25 C Symbol VCB VCEX VCEO VEB Ie 2N1021 100 2N1022 120 Unit Volts
