2N2079, 2N2075 Datasheet - Motorola

2N2079 PNP germanium power transistors

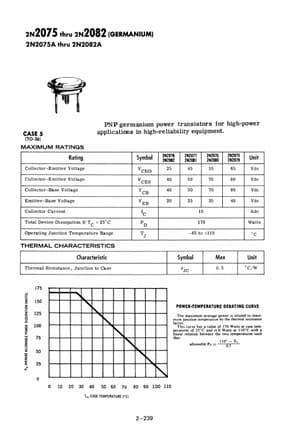

2N2075 thru 2N2082 (GERMANIUM) 2N2075A thru 2N2082A CASE 5 (TO-36) MAXIMUM RATINGS Rating Collector-Emitter Voltage PNP germanium power transistors for high-power applications in high-reliability equipment. Symbol 2N2078 2N2082 2N2077 2N2081 2N207& 2N2080 2N2075 2N2079 Unit VCEO 25 45 55 65 Vdc Collector-Emitter Voltage VCES 40 50 70 80 Vdc Collector-Base Voltage VCB 40 50 70 80 Vdc Emitter-Base Voltage VEB 20 25 35 40 Vdc Collector Current IC 15 Adc Total.

2N2075-Motorola.pdf

This datasheet PDF includes multiple part numbers: 2N2079, 2N2075. Please refer to the document for exact specifications by model.
2N2079 Datasheet Preview Page 2 2N2079 Datasheet Preview Page 3

Datasheet Details

Part number:

2N2079, 2N2075

Manufacturer:

Motorola

File Size:

240.35 KB

Description:

Pnp germanium power transistors.

Note:

This datasheet PDF includes multiple part numbers: 2N2079, 2N2075.
Please refer to the document for exact specifications by model.
