2N2857 Datasheet - Motorola

2N2857 HIGH FREQUENCY TRANSISTOR

2N2857 2N3839 2N2857 JAN, JTX, JTXV AVAILABLE CASE 20-03, STYLE 10 TO-72 (TO-206AF) HIGH FREQUENCY TRANSISTOR NPN SILICON MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous @Total Device Dissipation T/ = 25°C Derate above 25°C @Total Device Dissipation Trj = 25°C Derate above 25°C Storage Temperature Symbol vCEO VCBO VEBO 'C PD Pd Tsta Value 15 30 2.5 40 200 1.14 300 1.72 - 65 to + 200 Unit Vdc Vdc Vdc mAdc mW m.

2N2857-Motorola.pdf

Preview of 2N2857 PDF

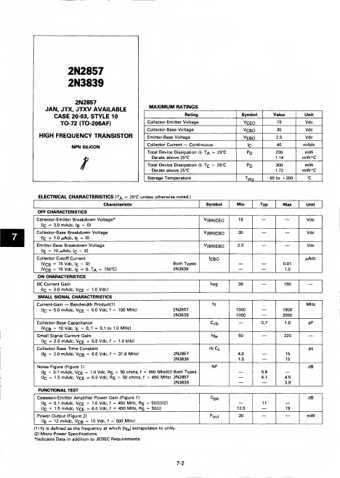

2N2857 Datasheet Preview Page 2 2N2857 Datasheet Preview Page 3

Datasheet Details

Part number:

2N2857

Manufacturer:

Motorola

File Size:

351.94 KB

Description:

High frequency transistor.
