2N5630 - Power Transistor

2N5630 Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by 2N5630/D High-Voltage Ċ High Power Transistors ...designed for use in high power au.

2N5630 Applications

* and high voltage switching regulator circuits.
* High Collector Emitter Sustaining Voltage
* VCEO(sus) = 120 Vdc
* 2N5630, 2N6030 VCEO(sus) = 140 Vdc
* 2N5631, 2N6031
* High DC Current Gain
* @ IC = 8.0 Adc hFE = 20 (Min)
* 2N5630, 2N6030

📥 Download Datasheet

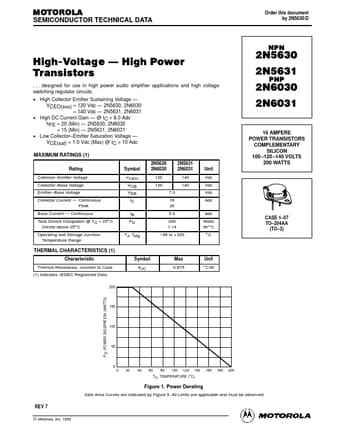

Preview of 2N5630 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N5630
Manufacturer
Motorola
File Size
252.86 KB
Datasheet
2N5630-Motorola.pdf
Description
Power Transistor
