2N6505, 2N6504 SILICON CONTROLLED RECTIFIERS

📥 Download Datasheet  Datasheet Preview Page 1

Description

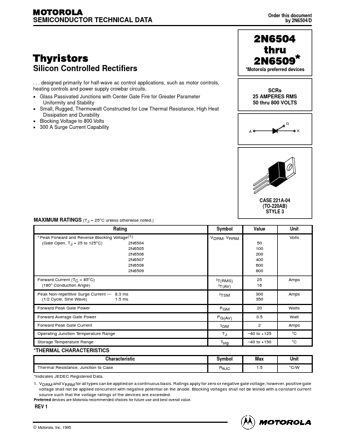

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Thyristors Silicon Controlled Rectifiers ...designed primarily for half-wave ac control applications, such as.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2N6505, 2N6504. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
2N6505, 2N6504
Manufacturer
Motorola
File Size
111.05 KB
Datasheet
2N6504-Motorola.pdf
Description
SILICON CONTROLLED RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: 2N6505, 2N6504.
Please refer to the document for exact specifications by model.

Applications

* such as motor controls, heating controls and power supply crowbar circuits.
* Glass Passivated Junctions with Center Gate Fire for Greater Parameter Uniformity and Stability
* Small, Rugged, Thermowatt Constructed for Low Thermal Resistance, High Heat Dissipation and Durability
