2N6507, 2N6504 Datasheet - Motorola

2N6507 SILICON CONTROLLED RECTIFIERS

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Thyristors Silicon Controlled Rectifiers . . . designed primarily for half-wave ac control applications, such as motor controls, heating controls and power supply crowbar circuits. Glass Passivated Junctions with Center Gate Fire for Greater Parameter Uniformity and Stability Small, Rugged, Thermowatt Constructed for Low Thermal Resistance, High Heat Dissipation and Durability Blocking Voltage to 800 Volts 300 A Surge .

2N6504-Motorola.pdf

This datasheet PDF includes multiple part numbers: 2N6507, 2N6504. Please refer to the document for exact specifications by model.

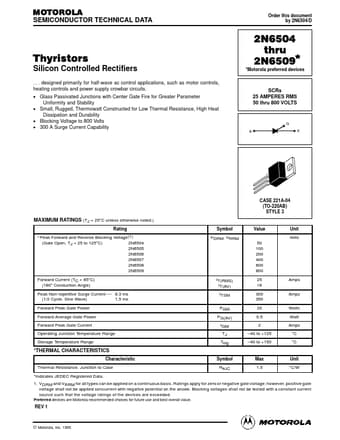

2N6507 Datasheet Preview Page 2 2N6507 Datasheet Preview Page 3

Datasheet Details

Part number:

2N6507, 2N6504

Manufacturer:

Motorola

File Size:

111.05 KB

Description:

Silicon controlled rectifiers.

Note:

This datasheet PDF includes multiple part numbers: 2N6507, 2N6504.
Please refer to the document for exact specifications by model.
