2N956 GENERAL PURPOSE TRANSISTOR

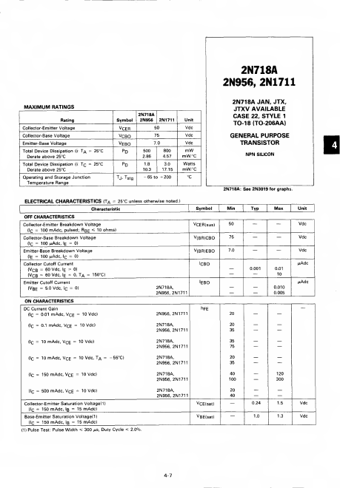

2N718A 2N956, 2N1711 MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Total Device Dissipation (a T^ = 25°C Derate above 25°C Total Device Dissipation (S Tq = 25°C Derate above 25°C Operating and Storage Junction Temperature Range 2N718A Symbol 2N956 2N1711 VCER VCBO VEBO Pd 50 75 7.0 500 2.86 800 4.57 pd TJ- Tst g 1.8 10.3 3.0 17.15 - 65 to + 200 Unit Vdc Vdc Vdc mW mW,'°C Watts mW/°C °C 2N718A JAN, JTX, JTXV AVAILABLE CASE 22, STYLE 1 T.
