54LS373 Datasheet - Motorola

54LS373 OCTAL TRANSPARENT LATCH

OCTAL TRANSPARENT LATCH WITH 3-STATE OUTPUTS; OCTAL D-TYPE FLIP-FLOP WITH 3-STATE OUTPUT The SN54 / 74LS373 consists of eight latches with 3-state outputs for bus organized system applications. The flip-flops appear transparent to the data (data changes asynchronously) when Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the setup times is latched. Data appears on the bus www.DataSheet4wUh.ceonmthe Output Enable (OE) is LOW. When OE is HIGH the bus output is in the high impedance.

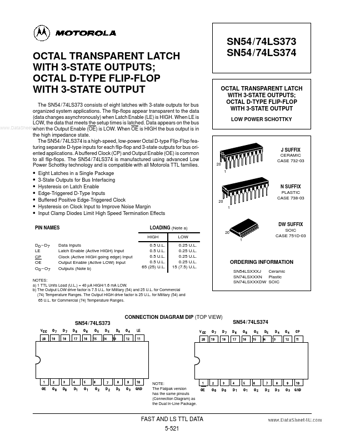

54LS373-Motorola.pdf

Preview of 54LS373 PDF
54LS373 Datasheet Preview Page 2 54LS373 Datasheet Preview Page 3

Datasheet Details

Part number:

54LS373

Manufacturer:

Motorola

File Size:

185.72 KB

Description:

Octal transparent latch.
