54LS30 - 8-Input NAND Gate

Product Overview

National Semiconductor

📥 Download Datasheet

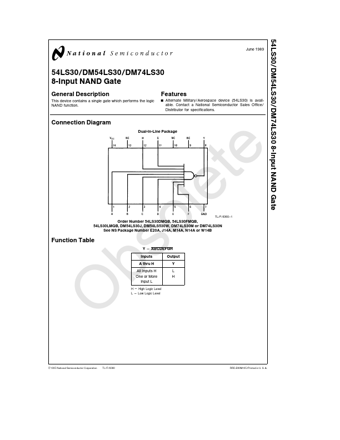

54LS30 8-Input NAND Gate by National Semiconductor - Datasheet Preview — Datasheet preview – 54LS30

Datasheet Details

Part number	54LS30
Manufacturer	National Semiconductor
File Size	317.42 KB
Description	8-Input NAND Gate
Datasheet	54LS30 Datasheet
Additional preview pages of the 54LS30 datasheet.

Product details

Description

This device contains a single gate which performs the logic NAND function

Features

Y Alternate Military Aerospace device (54LS30) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package Obsolete TL F 6360.
1 Order Number 54LS30DMQB 54LS30FMQB 54LS30LMQB DM54LS30J DM54LS530W DM74LS30M or DM74LS30N See NS Package Number E20A J14A M14A N14A or W14B Function Table Y e.
