74HC157A - Quad 2-Input Data Selectors/Multiplexers

74HC157A Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quad 2-Input Data Selectors/Multiplexers High *Performance Silicon *Gate CMOS The MC54/74HC157A i.

74HC157A Applications

* of any voltage higher than maximum rated voltages to this high
* impedance cir- cuit. For proper operation, Vin and v vVout should be constrained to the range GND (Vin or Vout) VCC. Unused inputs must always be tied to an appropriate logic voltage level (e. g. , either GND or VCC). Unused output

📥 Download Datasheet

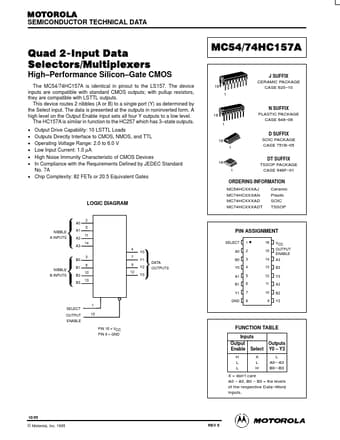

Preview of 74HC157A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
74HC157A
Manufacturer
Motorola
File Size
221.32 KB
Datasheet
74HC157A-Motorola.pdf
Description
Quad 2-Input Data Selectors/Multiplexers
