74HC157D - Quad 2-Channel Multiplexer

74HC157D Description

CMOS Digital Integrated Circuits Silicon Monolithic 74HC157D 74HC157D 1.Functional .
Quad 2-Channel Multiplexer 2.

74HC157D Features

* (1) Wide operating temperature range: Topr = -40 to 125
* (Note 1) (2) High speed: tpd = 10 ns (typ. ) at VCC = 5 V (3) Low power dissipation: ICC = 4.0 µA (max) at Ta = 25
* (4) Balanced propagation delays: tPLH ≈ tPHL (5) Wide operating voltage range: VCC(opr) = 2.0 to 6.0 V Note 1: Operati

📥 Download Datasheet

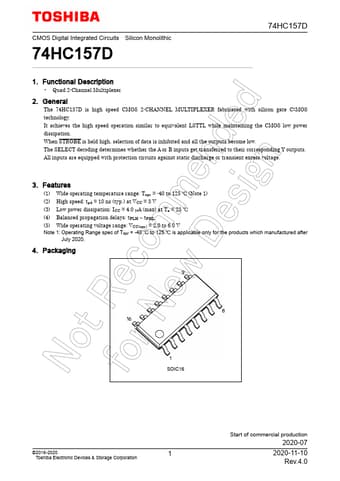

Preview of 74HC157D PDF
