74HC123D - Dual Monostable Multivibrator

Datasheet Summary

Description

2.

The 74HC123D is a high speed CMOS MONOSTABLE MULTIVIBRATOR fabricated with silicon gate C2MOS technology.

It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation.

Features

  • (Note) (1) Wide operating temperature range: Topr = -40 to 125.
  • (Note 1) (2) High speed: tpd = 25 ns (typ. ) at VCC = 5 V (3) Low power dissipation: Standby state: ICC = 4.0 µA (max) at Ta = 25.
  • Active state: ICC = 1000 µA (max) at Ta = 25.
  • (4) Balanced propagation delays: tPLH ≈ tPHL (5) Wide operating voltage range: VCC(opr) = 2.0 to 6.0 V Note: In the case of using only one circuit, CLR should be tied to GND, RX/CX.
  • CX.
  • Q.
  • Q should be tied to OPEN, the other inputs shou.

📥 Download Datasheet

Datasheet preview – 74HC123D

Datasheet Details

Part number 74HC123D
Manufacturer Toshiba
File Size 347.65 KB
Description Dual Monostable Multivibrator
Datasheet download datasheet 74HC123D Datasheet
Additional preview pages of the 74HC123D datasheet.

📁 Similar Datasheet

  • 74HC123D - Dual retriggerable monostable multivibrator (nexperia)
  • 74HC123 - High-Speed CMOS Logic Dual Retriggerable Monostable Multivibrators (Texas Instruments)
  • 74HC123 - Dual retriggerable monostable multivibrator (Philips)
  • 74HC123 - Dual retriggerable monostable multivibrator (NXP)
  • 74HC123 - Dual retriggerable monostable multivibrator (nexperia)
  • 74HC123-Q100 - Dual retriggerable monostable multivibrator (NXP)
  • 74HC123-Q100 - Dual retriggerable monostable multivibrator (nexperia)
  • 74HC123BQ - Dual retriggerable monostable multivibrator (nexperia)
  • 74HC125 - Quadruple Buffers (Texas Instruments)
  • 74HC125 - QUADRUPLE 3-STATE BUFFERS (Diodes)
Other Datasheets by Toshiba

Full PDF Text Transcription

Click to expand full text

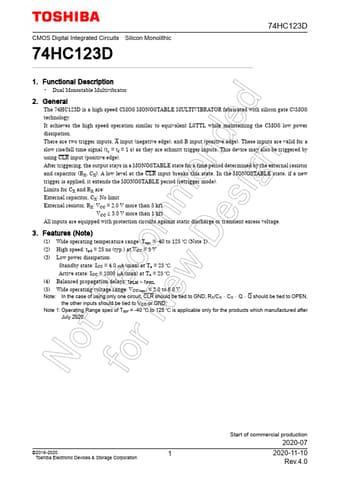

CMOS Digital Integrated Circuits Silicon Monolithic 74HC123D 74HC123D 1. Functional Description • Dual Monostable Multivibrator 2. General The 74HC123D is a high speed CMOS MONOSTABLE MULTIVIBRATOR fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. There are two trigger inputs, A input (negative edge), and B input (positive edge). These inputs are valid for a slow rise/fall time signal (tr = tf = 1 s) as they are schmitt trigger inputs. This device may also be triggered by using CLR input (positive edge). After triggering, the output stays in a MONOSTABLE state for a time period determined by the external resistor and capacitor (RX, CX).
