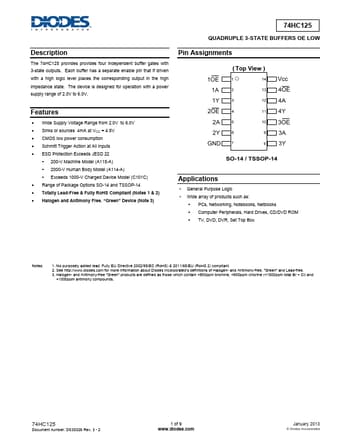

74HC125T14 Datasheet, Buffers, Diodes

74HC125T14 Features

• Buffers
• Wide Supply Voltage Range from 2.0V to 6.0V
• Sinks or sources 4mA at VCC = 4.5V
• CMOS low power consumption
• Schmitt Trigger Action at All Inputs

PDF File Details

Part number:

74HC125T14

Manufacturer:

DIODES ↗

File Size:

300.31kb

Download:

📄 Datasheet

Description:

Quadruple 3-state buffers. The 74HC125 provides provides four independent buffer gates with 3-state outputs. Each buffer has a separate enable pin that if drive

74HC125T14 Application

• Applications
• General Purpose Logic
• Wide array of products such as:
• PCs, Networking, Notebooks, Netbooks
• Comp
