74HC125 Datasheet, Buffers, Texas Instruments

74HC125 Features

  • Buffers
  • Buffered inputs
  • Wide operating voltage range: 2 V to 6 V
  • Wide operating temperature range:
      –40°C to +85°C
  • Supports fanout up to 1

PDF File Details

Part number:

74HC125

Manufacturer:

Texas Instruments ↗

File Size:

1.81MB

Download:

📄 Datasheet

Description:

Quadruple buffers. This device contains four independent buffers with 3-state outputs. Each gate performs the Boolean function Y = A in positive logic.

Datasheet Preview: 74HC125 📥 Download PDF (1.81MB)

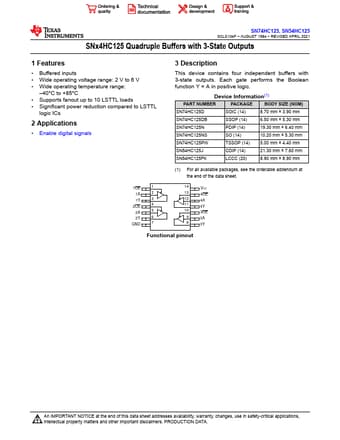

Page 2 of 74HC125 Page 3 of 74HC125

74HC125 Application

  • Applications
  • Enable digital signals 3 Description This device contains four independent buffers with 3-state outputs. Each gate performs
