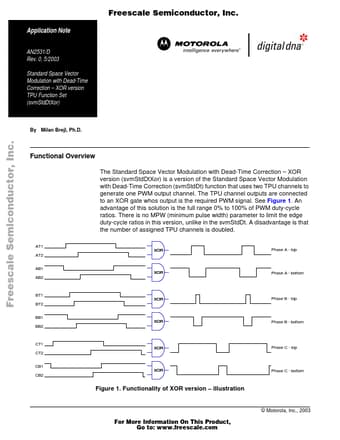

Freescale Semiconductor, Inc. Application Note AN2531/D Rev. 0, 5/2003 Standard Space Vector Modulation with Dead-Time Correction – XOR version TPU Function Set (svmStdDtXor) By Milan Brejl, Ph.D. Freescale Semiconductor, Inc... Functional Overview The Standard Space Vector Modulation with Dead-Time Correction – XOR version (svmStdDtXor) is a version of the Standard Space Vector Modulation with Dead-Time Correction (svmStdDt) function that uses two TPU channels to generate one PWM output channel. The TPU channel outputs are connected to an XOR gate whos output is the required PWM signal. See Figure 1. An advantage of this solution is the full range 0% to 100% of PWM duty-cycle ratios.
