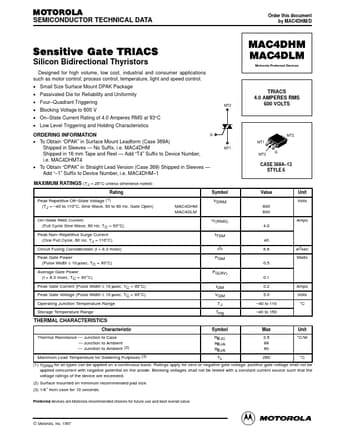

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document by MAC4DHM/D
Sensitive Gate TRIACS
Silicon Bidirectional Thyristors
• Small Size Surface Mount DPAK Package • Passivated Die for Reliability and Uniformity • Four–Quadrant Triggering • Blocking Voltage to 600 V • On–State Current Rating of 4.0 Amperes RMS at 93°C • Low Level Triggering and Holding Characteristics
G ORDERING INFORMATION • To Obtain “DPAK” in Surface Mount Leadform (Case 369A) Shipped in Sleeves — No Suffix, i.e. MAC4DHM Shipped in 16 mm Tape and Reel — Add “T4” Suffix to Device Number, i.e. MAC4DHMT4 • To Obtain “DPAK” in Straight Lead Version (Case 369) Shipped in Sleeves — Add “–1” Suffix to Device Number, i.e.
