MAC4DHMT4 - Triac

Datasheet Summary

Description

Small size surface mount DPAK package Passivated die for reliability and uniformity Low level triggering and holding characteristics Triggering in all four quadrants Blocking voltage to 600V Minimum Lot-to-Lot variations for robust device performance and reliable operat

INCHANGE

📥 Download Datasheet

Datasheet Details

Part number	MAC4DHMT4
Manufacturer	INCHANGE
File Size	209.54 KB
Description	Triac
Datasheet	MAC4DHMT4 Datasheet
Additional preview pages of the MAC4DHMT4 datasheet.

📁 Similar Datasheet

MAC4DHM - Triac (Motorola)
MAC4DHM - Sensitive Gate Triacs Silicon Bidirectional Thyristors (ON Semiconductor)
MAC4DHM - Thyristors (Littelfuse)
MAC4DHM - Sensitive Gate Triacs (HAOPIN)
MAC4DCM - Triac (Motorola)
MAC4DCM - Triacs Silicon Bidirectional Thyristors (ON Semiconductor)
MAC4DCN - Triac (Motorola)
MAC4DCN - Triacs Silicon Bidirectional Thyristors (ON Semiconductor)
MAC4DCN - Three quadrant triacs (HAOPIN)
MAC4DLM - Triac (Motorola)

Other Datasheets by INCHANGE

MAC210A8 - Triac
MAC223A10FP - Triac
MAC97A6 - Triac
MAC97A8 - Triac

Full PDF Text Transcription

Click to expand full text

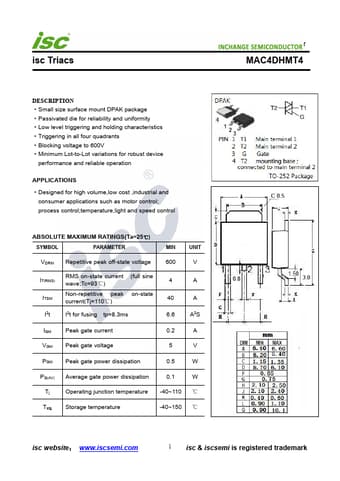

isc Triacs INCHANGE Semiconductor MAC4DHMT4 DESCRIPTION ·Small size surface mount DPAK package ·Passivated die for reliability and uniformity ·Low level triggering and holding characteristics ·Triggering in all four quadrants ·Blocking voltage to 600V ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for high volume,low cost ,industrial and consumer applications such as motor control; process control;temperature,light and speed control ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER MIN VDRM Repetitive peak off-state voltage 600 IT(RMS) RMS on-state current (full sine wave;Tc=93℃) 4 ITSM Non-repetitive peak on-state current(Tj=110℃) 40 I2t I2t for fusing tp=8.3ms 6.
