MBR4030, MBR4020 - SCHOTTKY BARRIER RECTIFIERS

MBR4030 Description

MBR4020 MBR4030 MBR4040 ® MOTOROLA HOT CARRIER POWER RECTIFIER II * ..employing the Schottky Barrier principle in a large area metal-ta-silic.

MBR4030 Features

* epitaxial construction with oxide passivation and metal overlap contact. Ideally suited for use as rectifiers in low-voltage, high-frequency inverters, free wheeling diodes, and polarity protection diodes.
* extremely Low vF
* Low Stored Charge, Majority Carrier Conduction

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR4030, MBR4020. Please refer to the document for exact specifications by model.

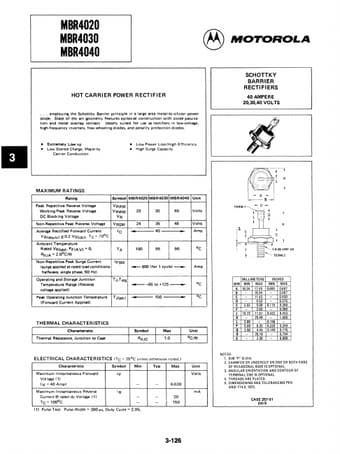

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR4030, MBR4020
Manufacturer
Motorola
File Size
325.83 KB
Datasheet
MBR4020-Motorola.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MBR4030, MBR4020.
Please refer to the document for exact specifications by model.
