MC100E131, MC10E131 Datasheet - Motorola

MC100E131 4-BIT D FLIP-FLOP

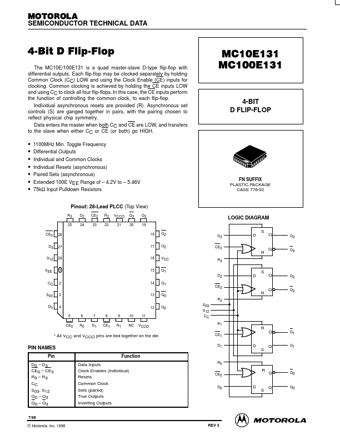

MOTOROLA SEMICONDUCTOR TECHNICAL DATA 4ĆBit D FlipĆFlop The MC10E/100E131 is a quad master-slave D-type flip-flop with differential outputs. Each flip-flop may be clocked separately by holding Common Clock (CC) LOW and using the Clock Enable (CE) inputs for clocking. Common clocking is achieved by holding the CE inputs LOW and using CC to clock all four flip-flops. In this case, the CE inputs perform the function of controlling the common clock, to each flip-flop. Individual asynchronous reset.

MC10E131-Motorola.pdf

This datasheet PDF includes multiple part numbers: MC100E131, MC10E131. Please refer to the document for exact specifications by model.
MC100E131 Datasheet Preview Page 2 MC100E131 Datasheet Preview Page 3

Datasheet Details

Part number:

MC100E131, MC10E131

Manufacturer:

Motorola

File Size:

104.37 KB

Description:

4-bit d flip-flop.

Note:

This datasheet PDF includes multiple part numbers: MC100E131, MC10E131.
Please refer to the document for exact specifications by model.
