MC10231, MC10231FN Datasheet - Motorola

MC10231 - Master-Slave Flip-Flop

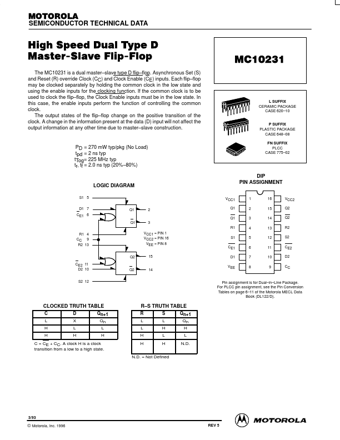

MOTOROLA SEMICONDUCTOR TECHNICAL DATA High Speed Dual Type D Master-Slave Flip-Flop The MC10231 is a dual master slave type D flip flop.

Asynchronous Set (S) and Reset (R) override Clock (CC) and Clock Enable (CE) inputs.

Each flip flop may be clocked separately by holding the common clock in the low state and using the enable inputs for the clocking function.

If the common clock is to be used to clock the flip flop, the Clock Enable inputs must be in the low sta

MC10231FN_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: MC10231, MC10231FN. Please refer to the document for exact specifications by model.
