MC12002 Datasheet - Motorola

MC12002 ANALOG MIXER

Order this document by MC12002/D MC12002 Analog Mixer The MC12002 is a double balanced analog mixer, including an input amplifier feeding the mixer carrier port and a temperature compensated bias regulator. The input circuits for both the amplifier and mixer are differential amplifier circuits. The on-chip regulator provides all of the required biasing. This circuit is designed for use as a balanced mixer in high-frequency wide-band circuits. Other typical applications include suppressed carrie.

MC12002 Features

* otorola does not convey any license under its patent rights nor the rights of others. Motorola products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other

MC12002 Datasheet (136.64 KB)

Preview of MC12002 PDF

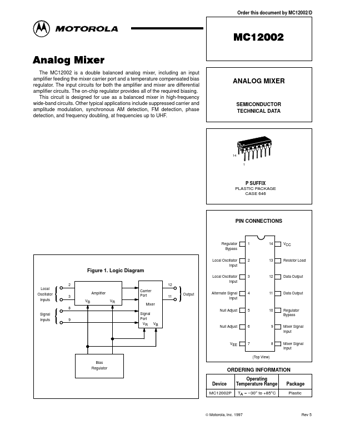

MC12002 Datasheet Preview Page 2 MC12002 Datasheet Preview Page 3

Datasheet Details

Part number:

MC12002

Manufacturer:

Motorola

File Size:

136.64 KB

Description:

Analog mixer.
