MC12032B, MC12032A Datasheet - Motorola

MC12032B 2.0GHz Dual Modules Prescaler

Order this document by MC12032A/D Consider MC12054A for New Design 2.0GHz Dual Modulus Prescaler MC12032A MC12032B The MC12032A can be used with CMOS synthesizers requiring positive edges to trigger internal counters such as Motorola’s MC145XXX series in a PLL to provide tuning signals up to 2.0 GHz in programmable frequency steps. The MC12032B can be used with CMOS synthesizers requiring negative edges to trigger internal counters. A Divide Ratio Control (SW) permits selection of a 64/65 or .

MC12032A-Motorola.pdf

This datasheet PDF includes multiple part numbers: MC12032B, MC12032A. Please refer to the document for exact specifications by model.

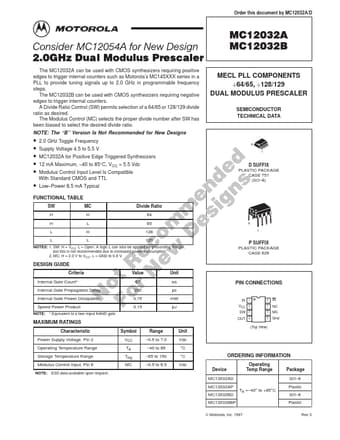

MC12032B Datasheet Preview Page 2 MC12032B Datasheet Preview Page 3

Datasheet Details

Part number:

MC12032B, MC12032A

Manufacturer:

Motorola

File Size:

81.26 KB

Description:

2.0ghz dual modules prescaler.

Note:

This datasheet PDF includes multiple part numbers: MC12032B, MC12032A.
Please refer to the document for exact specifications by model.
