MC14419, MC14419L 2-Of-8 Keypad-To-Binary Encoder

MC14419 Description

MCl~19 2-OF-8 KEYPAD-TO-BINARY ENCODER The MC14419 is designed for phone dialer system applications, but finds many applications as a keypad-to-bin.

MC14419 Applications

* but finds many applications as a keypad-to-binary encoder. The device con- tains a 2-of-8 to binary encoder, a strobe generator, and an illegal state detector. The encoder has four row inputs and four column inputs, and is designed to accept inputs from 16 keyswitches arranged in a 4x 4 matrix

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MC14419, MC14419L. Please refer to the document for exact specifications by model.

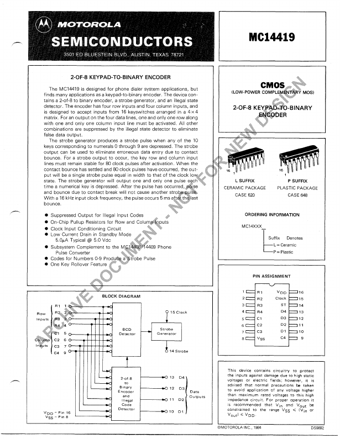

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC14419, MC14419L
Manufacturer
Motorola
File Size
541.65 KB
Datasheet
MC14419L_MotorolaInc.pdf
Description
2-Of-8 Keypad-To-Binary Encoder
Note
This datasheet PDF includes multiple part numbers: MC14419, MC14419L.
Please refer to the document for exact specifications by model.
