MC144111 - Digital-to-Analog Converter
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
8 5 Packaging .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
10 Freescale reserves the right to change the detail specifications as may be required to permit improvements in the design of its products.
© Freescale Semiconductor, Inc., 2005.
All
Freescale Semiconductor Technical Data MC144110/D Rev.

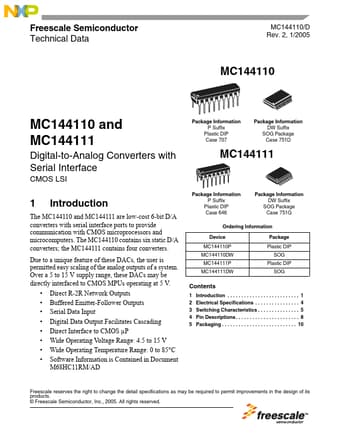

2, 1/2005 MC144110 MC144110 and MC144111 Digital-to-Analog Converters with Serial Interface CMOS LSI Package Information P Suffix Plastic DIP Case 707 Package Information DW Suffix SOG Package Case 751D MC144111 1 Introduction The MC144110 and MC144111 are low-cost 6-bit D/A converters with serial interface ports to provide communication with CMOS microprocessors and microcomputers.
The MC144110 contains six static D/A converters; the
