MC14531B 12-Bit Parity Tree

MOTOROLA SEMICONDUCTOR TECHNICAL DATA MC14531B 12-Bit Parity Tree The MC14531B 12 bit parity tree is constructed with MOS P channel and N channel enhancement mode devices in a single monolithic structure. The circuit consists of 12 data bit inputs (D0 thru D11), and even or odd parity selection input (W) and an output (Q). The parity selection input can be considered as an additional bit. Words of less than 13 bits can generate an even or odd parity output if th.

MC14531B Features

* NS D SUFFIX PLASTIC SOIC PACKAGE CASE 751B

* 05 ISSUE J

* A

* NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETER. 3. DIMENSIONS A AND B DO NOT INCLUDE MOLD PROTRUSION. 4. MAXIMUM MOLD PROTRUSION 0.15 (0.006) PER SIDE. 5. DIMENSION D

MC14531B Datasheet (172.34 KB)

Preview of MC14531B PDF

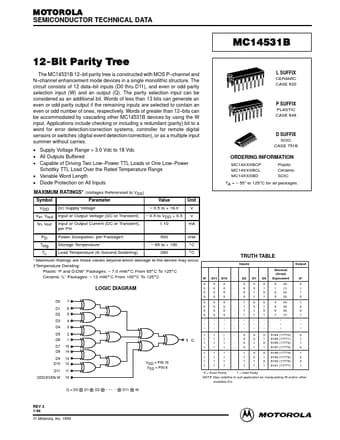

MC14531B Datasheet Preview Page 2 MC14531B Datasheet Preview Page 3

Datasheet Details

Part number:

MC14531B

Manufacturer:

Motorola

File Size:

172.34 KB

Description:

12-bit parity tree.
