MC14532B

8-Bit Priority Encoder

MC14532B Features

* Diode Protection on All Inputs

* Supply Voltage Range = 3.0 Vdc to 18 Vdc

* Capable of Driving Two Low

* Power TTL Loads or One Low

* Power Schottky TTL Load over the Rated Temperature Range

* NLV Prefix for Automotive and Other Applications Requiring Un

MC14532B Datasheet (201.41 KB)

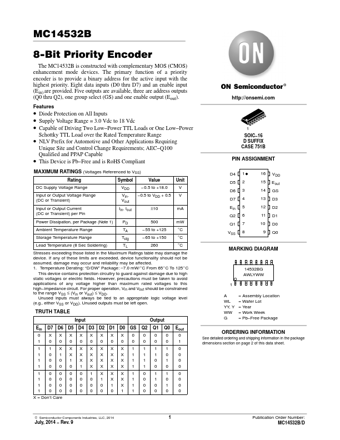

Preview of MC14532B PDF

Datasheet Details

Part number:

MC14532B

Manufacturer:

ON Semiconductor ↗

File Size:

201.41 KB

Description:

8-bit priority encoder.
MC14532B 8-Bit Priority Encoder The MC14532B is constructed with complementary MOS (CMOS) enhancement mode devices. The primary function of a priori.
