MC14513B - BCD-To-Seven Segment Latch/Decoder/Driver

Datasheet Summary

Features

  • E ANY OUTPUT 50% Figure 1. Dynamic Power Dissipation Signal Waveforms http://onsemi. com 4 ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ.

📥 Download Datasheet

Datasheet preview – MC14513B

Datasheet Details

Part number MC14513B
Manufacturer ON Semiconductor
File Size 185.50 KB
Description BCD-To-Seven Segment Latch/Decoder/Driver
Datasheet download datasheet MC14513B Datasheet
Additional preview pages of the MC14513B datasheet.

📁 Similar Datasheet

  • MC14513B - BCD-To-Seven Segment Latch/Decoder/Driver (Motorola)
  • MC145100 - 4 X 4 CROSSPOINT SWITCH (Motorola)
  • MC145104 - (MC145104 - MC145112) CMOS LSI (LOW-POWER COMPLEMENTARY MOS) PLL FREQUENCY SYNTHESIZERS (Motorola)
  • MC145106 - PLL Frequency Synthesizer (Motorola)
  • MC145107 - (MC145104 - MC145112) CMOS LSI (LOW-POWER COMPLEMENTARY MOS) PLL FREQUENCY SYNTHESIZERS (Motorola)
  • MC145109 - (MC145104 - MC145112) CMOS LSI (LOW-POWER COMPLEMENTARY MOS) PLL FREQUENCY SYNTHESIZERS (Motorola)
  • MC14510B - BCD Up/Down Counter (Motorola)
  • MC14511 - BCD-TO-SEVEN SEGMENT LATCH/DECODER/DRIVER (UTC)
  • MC145112 - CMOS MSI / Low Power Complementary MOS (Motorola)
  • MC14511B - BCD-To-Seven Segment Latch/Decoder/Driver (Motorola)
Other Datasheets by ON Semiconductor
  • MC14511B - BCD-To-Seven Segment Latch/Decoder/Driver
  • MC14512B - 8-Channel Data Selector
  • MC14514B - 4-Bit Transparent Latch/4-to-16-Line Decoder
  • MC14515 - 4-Bit Transparent Latch/4-to-16 Line Decoder
  • MC14515B - 4-Bit Transparent Latch/4-to-16-Line Decoder
  • MC14516B - Binary Up/Down Counter
  • MC14517B - Dual 64-Bit Static Shift Register
  • MC14518B - Dual Up Counters

Full PDF Text Transcription

Click to expand full text

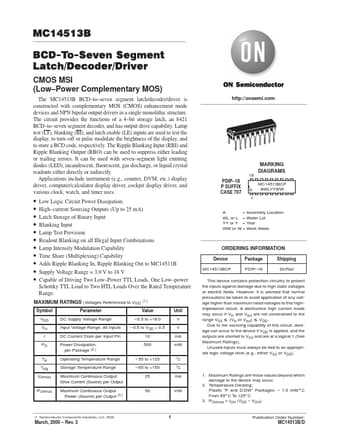

MC14513B BCD-To-Seven Segment Latch/Decoder/Driver CMOS MSI (Low–Power Complementary MOS) The MC14513B BCD–to–seven segment latch/decoder/driver is constructed with complementary MOS (CMOS) enhancement mode devices and NPN bipolar output drivers in a single monolithic structure. The circuit provides the functions of a 4–bit storage latch, an 8421 BCD–to–seven segment decoder, and has output drive capability. Lamp test (LT), blanking (BI), and latch enable (LE) inputs are used to test the display, to turn–off or pulse modulate the brightness of the display, and to store a BCD code, respectively. The Ripple Blanking Input (RBI) and Ripple Blanking Output (RBO) can be used to suppress either leading or trailing zeroes.
