MC145403 - DRIVER/RECEIVERS

Description

VCC Digital Power Supply The digital supply pin, which is connected to the logic power supply (+ 5.5 V maximum).

232

E connector (Pin 7) as well as to the logic power supply ground.

Features

  • Drivers.
  • ± 5 to ± 12 V Supply Range 300 Ω Power.
  • Off Source Impedance Output Current Limiting TTL and CMOS Compatible Inputs Driver Slew Rate Range Limited to 30 V/µs Maximum ± 25 V Input Range 3 to 7 kΩ Input Impedance 0.8 V of Hysteresis for Enhanced Noise Immunity TTL and CMOS Compatible Outputs 24 24 1 20 1 P SUFFIX.

📥 Download Datasheet

Datasheet preview – MC145403

Datasheet Details

Part number MC145403
Manufacturer Motorola
File Size 266.37 KB
Description DRIVER/RECEIVERS
Datasheet download datasheet MC145403 Datasheet
Additional preview pages of the MC145403 datasheet.

📁 Similar Datasheet

  • MC145406 - EIA-232-D/V.28 driver/receiver (Philips)
  • MC145407F - CMOS RS-232C Driver / Receiver (ETC)
  • MC145415 - Dual Tunable Linear Phase Low Pass Sampled Data Filters (Motorola Semiconductor)
  • MC14541B - Programmable Timer (ON Semiconductor)
  • MC145423 - Universal Digital Loop Transceiver (Freescale Semiconductor)
  • MC14543B - BCD-to-Seven Segment Latch/Decoder/Driver (ON Semiconductor)
  • MC145450 - 1200 Baud FSK Modem (Motorola Semiconductor)
  • MC14549B - Successive Approximation Registers (ON Semiconductor)
  • MC145010 - Photoelectric Smoke Detector IC (Freescale Semiconductor)
  • MC145011 - Photoelectric Smoke Detector IC (Freescale Semiconductor)
Other Datasheets by Motorola
  • MC145402 - Serial 13-Bit Linear Codec
  • MC145404 - DRIVER/RECEIVERS
  • MC145405 - DRIVER/RECEIVERS
  • MC145406 - Driver / Receiver
  • MC145407 - 5 Volt Only Driver / Recevier
  • MC145408 - DRIVER/RECEIVERS
  • MC145412 - Pulse/Tone Repertory Dialer Low Power SIilicon-Gate CMOS
  • MC145413 - Pulse/Tone Repertory Dialer Low Power SIilicon-Gate CMOS

Full PDF Text Transcription

Click to expand full text

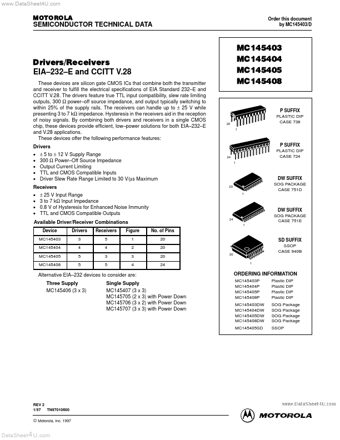

www.DataSheet4U.com MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MC145403/D MC145403 Drivers/Receivers MC145404 MC145405 MC145408 EIA–232–E and CCITT V.28 These devices are silicon gate CMOS ICs that combine both the transmitter and receiver to fulfill the electrical specifications of EIA Standard 232–E and CCITT V.28. The drivers feature true TTL input compatibility, slew rate limiting outputs, 300 Ω power–off source impedance, and output typically switching to within 25% of the supply rails. The receivers can handle up to ± 25 V while presenting 3 to 7 kΩ impedance. Hysteresis in the receivers aid in the reception of noisy signals.
