MC33121 - LOW VOLTAGE SUBSCRIBER LOOP INTERFACE CIRCUIT

MC33121 Description

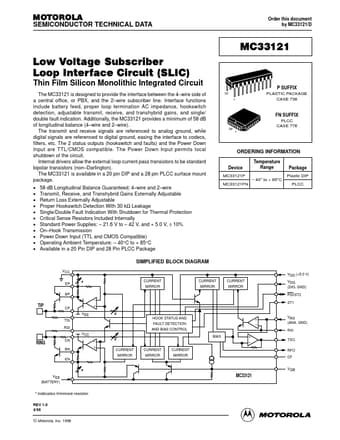

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MC33121/D MC33121 Low Voltage Subscriber Loop Interface Circuit (SLIC) Thin Film Silic.

MC33121 Features

* k RS 9.1 k RS 9.1 k RC 1.0 k 3 4 16 17 BP ST1 13 CP VDG VAG MC33121 RXI 14 TSI 9 IRXI 10 RRF 4.7 k RRO 20.3 k CRO 1.0 µF 1.0 µF +10.13 dB RRX 30.9 k 5 RSI RECEIVE IN (VRXI) CN RFO 8 BN TXO 11 2.0 k TRANSMIT OUT (VTX) 2 EN CF 7 1
* 24 V VEE VQB 6 301 CCF 1.0 µF 20

📥 Download Datasheet

Preview of MC33121 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC33121
Manufacturer
Motorola
File Size
570.99 KB
Datasheet
MC33121_Motorola.pdf
Description
LOW VOLTAGE SUBSCRIBER LOOP INTERFACE CIRCUIT
