MC33128 - POWER MANAGEMENT CONTROLLER

MC33128 Description

Order this document by MC33128/D Power Management Controller The MC33128 is a power management controller specifically designed for use in battery po.

MC33128 Features

* consisting of a battery latch that is activated upon battery insertion, low battery voltage shutdown, and a thermal over temperature detector. This device is available in a 16
* pin narrow body surface mount plastic package.
* Three Positive Regulated Outputs Featuring Low Dropout Volt

MC33128 Applications

* This device contains all of the active functions required to interface the user to the system electronics via a microprocessor. This integrated circuit consists of a low dropout voltage regulator with power
* up reset for MPU power, two low dropout voltage regulators for independant powering

📥 Download Datasheet

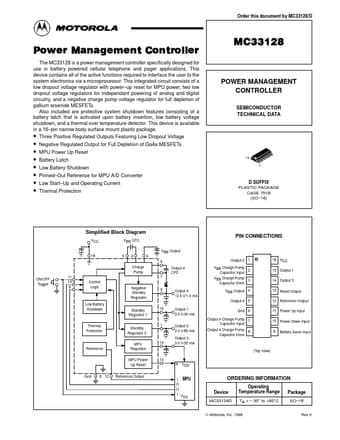

Preview of MC33128 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC33128
Manufacturer
Motorola
File Size
173.63 KB
Datasheet
MC33128_Motorola.pdf
Description
POWER MANAGEMENT CONTROLLER
