MC33287 Datasheet - Motorola

MC33287 Contact Monitoring and Dual Low Side Protected Driver

Pin Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Name VDD1 IN3 IN2 IN1 IN0 AD0 AD1 AD2 OUTD1 GND OUTD2 CD2 CD1 OUTI OUT7 IN7 IN6 IN5 IN4 VDD2 Description High Voltage Power Supply (Vbat) High Voltage Input 3 High Voltage Input 2 High voltage input 1 High Voltage Input 0 Adress for Mo.

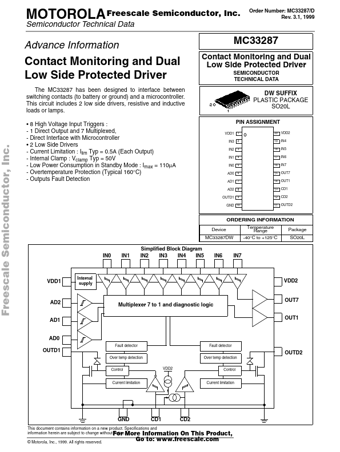

MOTOROLA Freescale Semiconductor, Inc. Semiconductor Technical Data Order Number: MC33287/D Rev. 3.1, 1999 Advance Information MC33287 Contact Monitoring and Dual Low Side Protected Driver SEMICONDUCTOR TECHNICAL DATA Contact Monitoring and Dual Low Side Protected Driver The MC33287 has been designed to interface between switching contacts (to battery or ground) and a microcontroller. This circuit includes 2 low side drivers, resistive and inductive loads or lamps. 8 High Voltage I.

MC33287 Datasheet (360.74 KB)

Preview of MC33287 PDF

Datasheet Details

Part number:

MC33287

Manufacturer:

Motorola

File Size:

360.74 KB

Description:

Contact monitoring and dual low side protected driver.
