MC33288

Solid State Relay

MC33288 Features

* The device consists of two 25mΩ Rdson fully protected high side switches, in a surface mount power package. It interfaces directly with a microcontroller and includes a current recopy function in order to allow the detection of a failed lamp in the application. SOLID STATE RELAY FOR AUTOMOTIVE FLA

MC33288 General Description

Pin No. Name/Function Description TAB Vbat Supply Voltage The backside TAB is connected to the power supply of the MC33288DH. In addition to its supply function, this pin contributes to the thermal behaviour of the device by conducting the heat from the switching MOSFET to the printed circuit .

MC33288 Datasheet (382.73 KB)

Preview of MC33288 PDF

Datasheet Details

Part number:

MC33288

Manufacturer:

Motorola

File Size:

382.73 KB

Description:

Solid state relay.

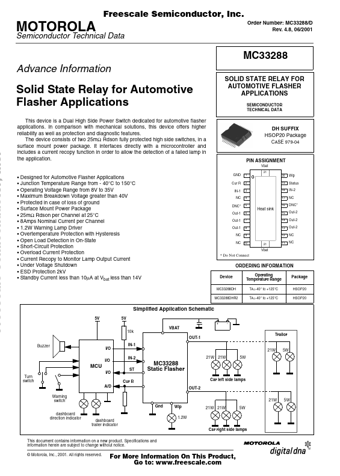

Freescale Semiconductor, Inc. MOTOROLA Order Number: MC33288/D Rev. 4.8, 06/2001 Semiconductor Technical Data MC33288 Advance Information Solid S.
