MC3334 Datasheet, circuit equivalent, Motorola

MC3334 Features

  • Circuit ed from above the component surface. All chips have the same size and bonding pad spacing. See Figure 4 for dimensions. MOTOROLA ANALOG IC DEVICE DATA 3 MC3334 MCC3334 MCCF3334 Figur

PDF File Details

Part number:

MC3334

Manufacturer:

Motorola

File Size:

110.78kb

Download:

📄 Datasheet

Description:

High energy ignition circuit. The MC3334 high energy ignition circuit was designed to serve aftermarket Delco five  –terminal ignition applications.

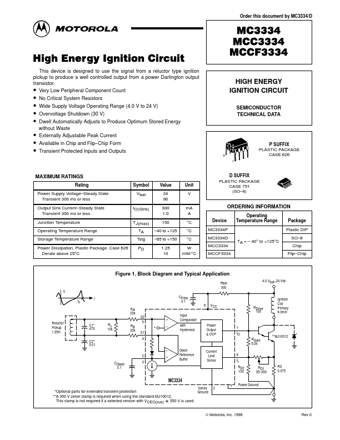

Datasheet Preview: MC3334 📥 Download PDF (110.78kb)
Page 2 of MC3334 Page 3 of MC3334

MC3334 Application

  • Applications This device, driving a high voltage Darlington transistor, offers an ignition system which optimizes spark energy at minimum power dis
