Datasheet Details
- Part number
- MC33346
- Manufacturer
- Motorola
- File Size
- 105.05 KB
- Datasheet
- MC33346_Motorola.pdf
- Description
- LITHIUM BATTERY PROTECTION
MC33346 Description

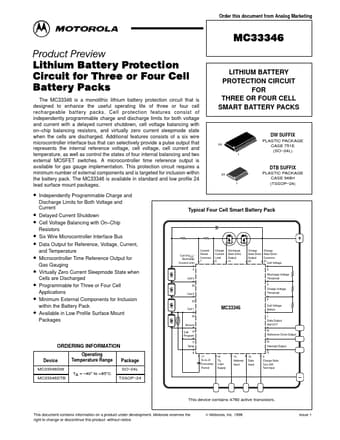

Order this document from Analog Marketing Product Preview MC33346 LITHIUM BATTERY PROTECTION CIRCUIT FOR THREE OR FOUR CELL SMART BATTERY PACKS Lit.
MC33346 Features
* consist of independently programmable charge and discharge limits for both voltage and current with a delayed current shutdown, cell voltage balancing with on
* chip balancing resistors, and virtually zero current sleepmode state when the cells are discharged. Additional features consists of a
MC33346 Applications
* Minimum External Components for Inclusion within the Battery Pack Available in Low Profile Surface Mount Packages
Typical Four Cell Smart Battery Pack
Cell 4/VCC/ Discharge Current Limit 3 Cell 3 24 Cell 2 23 Cell 1 22 Ground Cell 15 Program
Current Sense Common 7
Charge Current Limit 6
Dischar
