MC33702 - Microprocessor Power Supply

Product Overview

Motorola

Part number	MC33702
Manufacturer	Motorola
File Size	1.21 MB
Description	Microprocessor Power Supply
Datasheet	MC33702 Datasheet

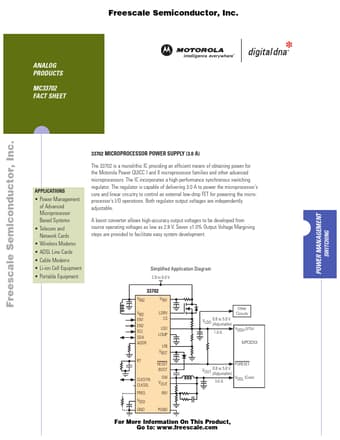

Additional preview pages of the MC33702 datasheet.

I2C with address register selection for programming control.
Programmable internal Watchdog and Power-ON Reset to ensure MCU performance integrity.
Synchronous buck converter with cycle-by-cycle PWM current mode control for enhanced output voltage accuracy.
Boost converter for enhanced low-voltage performance.
Adjustable switching regulator output voltage via external resistor divider.
External RC programmed Reset Power-UP Delay timer.
