MC3374

LOW VOLTAGE SINGLE CONVERSION FM RECEIVER

MC3374 Features

* k LED Data O/P RL SMA 0.022 1.0 0.1 100 K 10 8.2 k 0.22 Enable Disable NOTE: + = Through Hole MOTOROLA ANALOG IC DEVICE DATA 5 MC3374 CIRCUIT DESCRIPTION The MC3374 is an FM narrowband receiver capable of operation to 75 MHz. The low voltage design yields low power drain and excellent sensi

MC3374 General Description

The MC3374 is an FM narrowband receiver capable of operation to 75 MHz. The low voltage design yields low power drain and excellent sensitivity in narrowband voice and data link applications. In the typical application the mixer amplifies the incoming RF or IF signal and converts this frequency to 4.

MC3374 Datasheet (237.94 KB)

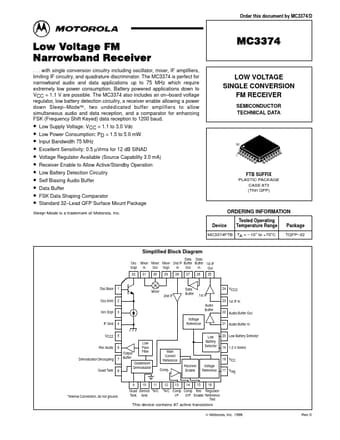

Preview of MC3374 PDF

Datasheet Details

Part number:

MC3374

Manufacturer:

Motorola

File Size:

237.94 KB

Description:

Low voltage single conversion fm receiver.
Order this document by MC3374/D Low Voltage FM Narrowband Receiver . . . with single conversion circuitry including oscillator, mixer, IF amplifiers,.
