Single wire can transceiver.

MC33897, Single Wire CAN Transceiver

of each terminal can be found in the Functional Terminal Description section, begining on page 12.

33897/A/C Terminal 1, 7, 8, 14 2 3, 4 5 6, 13 33897B/D Terminal 8 1 2, 3 4 * Terminal Name GND TXD MODE0, MODE1 RXD NC Formal Name Ground Transmit Data Mode Control Receive Data No Connect Defi

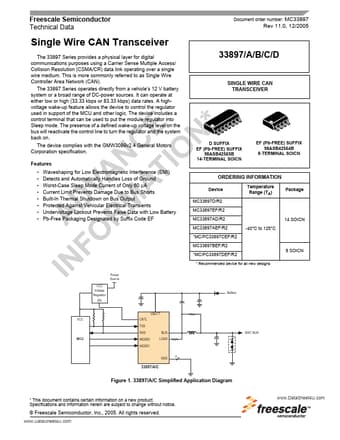

Freescale Semiconductor Technical Data Document order number: MC33897 Rev 11.0, 12/2005 Single Wire CAN Transceiver The 33897 Series provides a physical layer for digital communications purposes using a Carrier Sense Multiple Access/ Collision Resolution (CSMA/CR) data link operating over a single wire medium.

This is more commonly referred to as Single Wire Controller Area Network (CAN).

The 33897 Series operates directly from a vehicle's 12 V battery system or a broad range of DC-power sour

MC33897 Features

* Waveshaping for Low Electromagnetic Interference (EMI) Detects and Automatically Handles Loss of Ground Worst-Case Sleep Mode Current of Only 60 µA Current Limit Prevents Damage Due to Bus Shorts Built-In Thermal Shutdow
