MC34163 Datasheet - Motorola

MC34163 POWER SWITCHING REGULATORS

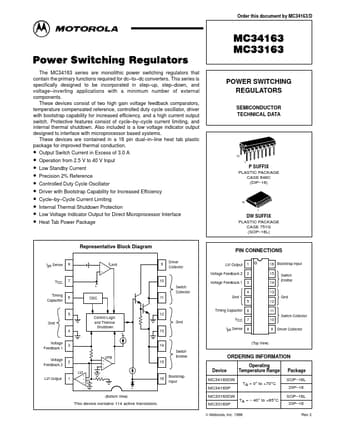

Order this document by MC34163/D Power Switching Regulators The MC34163 series are monolithic power switching regulators that contain the primary functions required for dc to dc converters. This series is specifically designed to be incorporated in step up, step down, and voltage inverting applications with a minimum number of external components. These devices consist of two high gain voltage feedback comparators, temperature compensated reference, contr.

MC34163 Features

* consist of cycle

* by

* cycle current limiting, and internal thermal shutdown. Also included is a low voltage indicator output designed to interface with microprocessor based systems. These devices are contained in a 16 pin dual

* in

* line heat tab plastic package for improv

MC34163 Datasheet (397.75 KB)
