MC74ACT139, MC74AC139 Datasheet - Motorola

MC74ACT139 DUAL 1-OF-4 DECODER/DEMULTIPLEXER

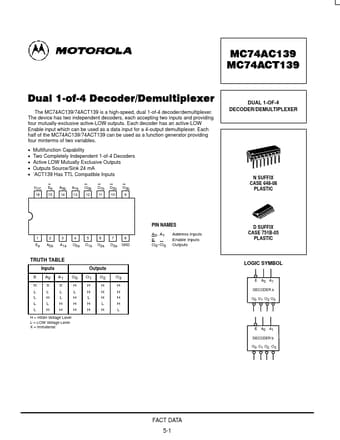

MC74AC139 MC74ACT139 Dual 1ĆofĆ4 Decoder/Demultiplexer The MC74AC139/74ACT139 is a high-speed, dual 1-of-4 decoder/demultiplexer. The device has two independent decoders, each accepting two inputs and providing four mutually-exclusive active-LOW outputs. Each decoder has an active-LOW Enable input which can be used as a data input for a 4-output demultiplexer. Each half of the MC74AC139/74ACT139 can be used as a function generator providing four minterms of two variables. Multifunctio.

MC74AC139-Motorola.pdf

This datasheet PDF includes multiple part numbers: MC74ACT139, MC74AC139. Please refer to the document for exact specifications by model.
MC74ACT139 Datasheet Preview Page 2 MC74ACT139 Datasheet Preview Page 3

Datasheet Details

Part number:

MC74ACT139, MC74AC139

Manufacturer:

Motorola

File Size:

172.50 KB

Description:

Dual 1-of-4 decoder/demultiplexer.

Note:

This datasheet PDF includes multiple part numbers: MC74ACT139, MC74AC139.
Please refer to the document for exact specifications by model.
