MC74ACT138 1-of-8 Decoder / Demultiplexer

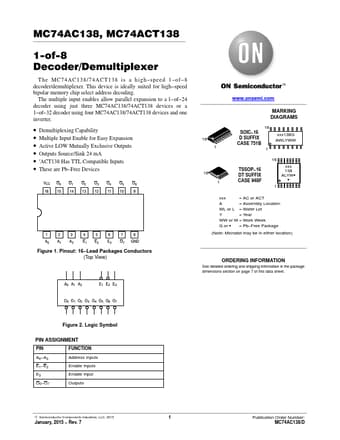

MC74AC138, MC74ACT138 1-of-8 Decoder/Demultiplexer The MC74AC138/74ACT138 is a high speed 1 of 8 decoder/demultiplexer. This device is ideally suited for high speed bipolar memory chip select address decoding. The multiple input enables allow parallel expansion to a 1 of 24 decoder using just three MC74AC138/74ACT138 devices or a 1 of 32 decoder using four MC74AC138/74ACT138 devices and one inverter. Demultiplexing Capabi.

MC74ACT138_ONSemiconductor.pdf

Preview of MC74ACT138 PDF
MC74ACT138 Datasheet Preview Page 2 MC74ACT138 Datasheet Preview Page 3

Datasheet Details

Part number:

MC74ACT138

Manufacturer:

ON Semiconductor ↗

File Size:

99.70 KB

Description:

1-of-8 decoder / demultiplexer.
