MC74HC4017 Datasheet - Motorola

MC74HC4017 DECADE COUNTER

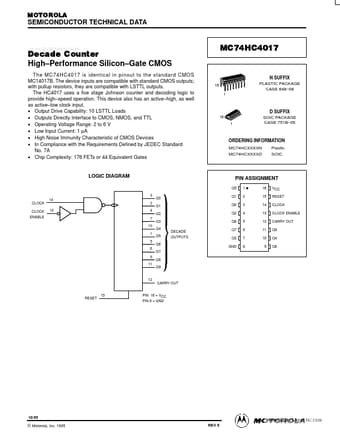

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Decade Counter www.DataSheet4U.com MC74HC4017 N SUFFIX PLASTIC PACKAGE CASE 648 08 1 High Performance Silicon Gate CMOS The MC74HC4017 is identical in pinout to the standard CMOS MC14017B. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. The HC4017 uses a five stage Johnson counter and decoding logic to provide high speed operation. This device also.

MC74HC4017_Motorola.pdf

Preview of MC74HC4017 PDF
MC74HC4017 Datasheet Preview Page 2 MC74HC4017 Datasheet Preview Page 3

Datasheet Details

Part number:

MC74HC4017

Manufacturer:

Motorola

File Size:

137.43 KB

Description:

Decade counter.
