MC74HC595A Datasheet - Motorola

MC74HC595A 8-Bit Serial-Input/Serial or Parallel-Output Shift Register

MOTOROLA SEMICONDUCTOR TECHNICAL DATA 8-Bit Serial-Input/Serial or Parallel-Output Shift Register with Latched 3-State Outputs High Performance Silicon Gate CMOS The MC54/74HC595A is identical in pinout to the LS595. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. The HC595A consists of an 8 bit shift register and an 8 bit D type latch with three state parallel outputs. T.

MC74HC595A_Motorola.pdf

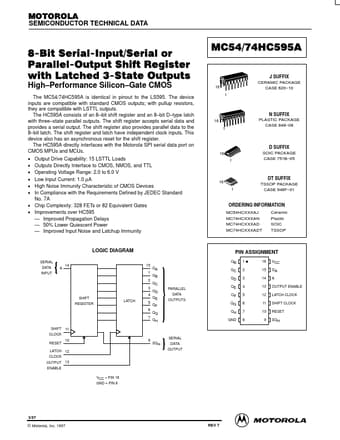

MC74HC595A Datasheet Preview — Preview of MC74HC595A PDF

Datasheet Details

Part number:

MC74HC595A

Manufacturer:

Motorola

File Size:

224.02 KB

Description:

8-bit serial-input/serial or parallel-output shift register.
