MCM6341 Datasheet - Motorola

MCM6341 128K x 24 Bit Static Random Access Memory

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MCM6341/D Advance Information MCM6341 128K x 24 Bit Static Random Access Memory The MCM6341 is a 3,145,728 bit static random access memory organized as 131,072 words of 24 bits. Static design eliminates the need for external clocks or timing strobes. The MCM6341 is equipped with chip enable (E1, E2, E3) and output enable (G) pins, allowing for greater system flexibility and eliminating bus contention problems. The MCM6341 .

MCM6341 Features

* uct sensitivities to noise require proper grounding and decoupling of power supplies as well as minimization or elimination of bus contention conditions during read and write cycles. 3. If G goes low coincident with or after W goes low, the output will remain in a high

* impedance state. 4. E1

MCM6341 Datasheet (124.15 KB)

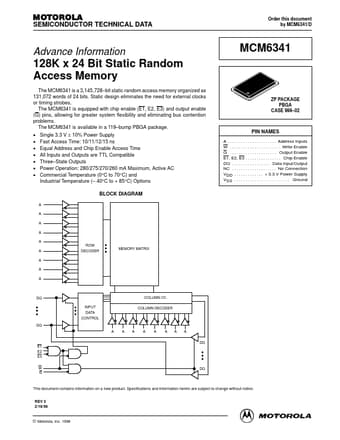

MCM6341 Datasheet Preview — Preview of MCM6341 PDF

Datasheet Details

Part number:

MCM6341

Manufacturer:

Motorola

File Size:

124.15 KB

Description:

128k x 24 bit static random access memory.
