MHW8205 Datasheet - Motorola

MHW8205 20.2 dB GAIN 860 MHz 128-CHANNEL CATV AMPLIFIER

MOTOROLA The RF Line SEMICONDUCTOR TECHNICAL DATA Order this document by MHW8205/D High Output Power Doubler 860 MHz CATV Amplifier Specified for 77, 110 and 128 Channel Performance Broadband Power Gain  @ f = 40 860 MHz Gp = 20.2 dB (Typ) Broadband Noise Figure NF = 7 dB (Typ) @ 860 MHz All Gold Metallization 7 GHz fT Ion Implanted Transistors Composite Triple Beat  @ 128 Channel Loading CTB =

MHW8205_MotorolaInc.pdf

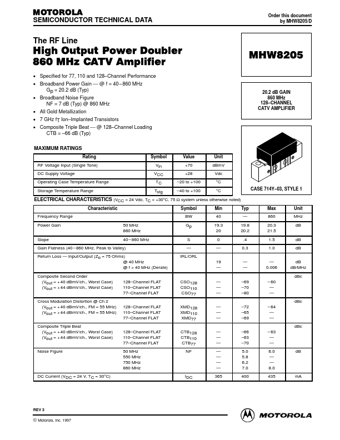

Preview of MHW8205 PDF
MHW8205 Datasheet Preview Page 2

Datasheet Details

Part number:

MHW8205

Manufacturer:

Motorola

File Size:

55.31 KB

Description:

20.2 db gain 860 mhz 128-channel catv amplifier.
