MHW8205R Datasheet - Motorola

MHW8205R High Output Mirror Power Doubler

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MHW8205R/D High Output Mirror Power Doubler 860 MHz CATV Amplifier Specified for 77, 110 and 128 Channel Performance Broadband Power Gain  @ f = 40 860 MHz Gp = 20.2 dB (Typ) Broadband Noise Figure NF = 7 dB (Typ) @ 860 MHz All Gold Metallization 7 GHz fT Ion Implanted Transistors The RF Line MHW8205R 20.2 dB GAIN 860 MHz 128 CHANNEL CATV AMPLIFIER.

MHW8205R_Motorola.pdf

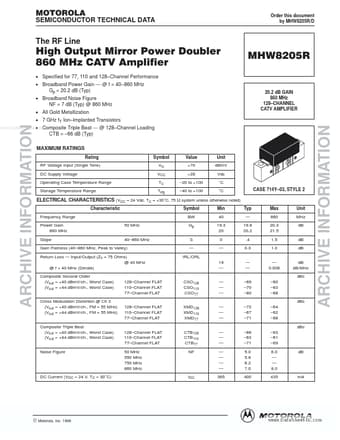

Preview of MHW8205R PDF
MHW8205R Datasheet Preview Page 2

Datasheet Details

Part number:

MHW8205R

Manufacturer:

Motorola

File Size:

73.89 KB

Description:

High output mirror power doubler.
