MMBD1005LT1 Datasheet - Motorola

MMBD1005LT1, Switching Diode

MOTOROLA SEMICONDUCTOR TECHNICAL DATA ™ Order this document by MMBD1005LT1/D Switching Diode Part of the GreenLine™ Portfolio of devices with energ.

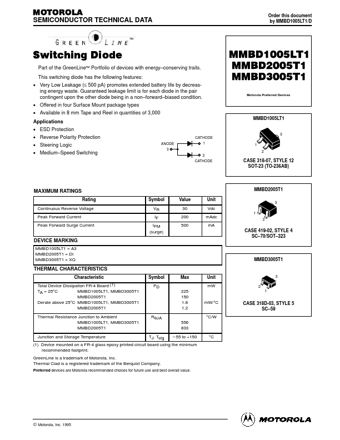

datasheet Preview Page 1 from Datasheet4u.com

MMBD1005LT1_MotorolaInc.pdf

MMBD1005LT1 Datasheet Preview — Preview of MMBD1005LT1 PDF

Datasheet Details

Part number:

MMBD1005LT1

Manufacturer:

Motorola

File Size:

160.29 KB

Description:

Switching Diode

Features

* Very Low Leakage (≤ 500 pA) promotes extended battery life by decreasing energy waste. Guaranteed leakage limit is for each diode in the pair contingent upon the other diode being in a non
* forward
* biased condition.
* Offered in four Surface Mount package types

Applications

* ESD Protection
* Reverse Polarity Protection
* Steering Logic
* Medium
* Speed Switching ANODE 3 CATHODE 1 2 CATHODE MMBD1005LT1 MMBD2005T1 MMBD3005T1 Motorola Preferred Devices MMBD1005LT1 3 1 2 CASE 318-07, STYLE 12 SOT-23 (TO-236AB) MAXIMUM RATINGS Rat
