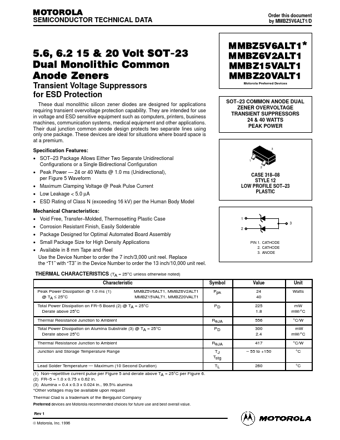

MMBZ5V6ALT1 - DUAL ZENER OVERVOLTAGE TRANSIENT SUPPRESSORS

Motorola

Datasheet Details

Part number	MMBZ5V6ALT1
Manufacturer	Motorola
File Size	129.54 KB
Description	DUAL ZENER OVERVOLTAGE TRANSIENT SUPPRESSORS
Datasheet	MMBZ5V6ALT1_MotorolaInc.pdf

SOT.
23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration.
Peak Power.
24 or 40 Watts @ 1.0 ms (Unidirectional), per Figure 5 Waveform.
Maximum Clamping Voltage @ Peak Pulse Current.
Low Leakage < 5.0 µA.
ESD Rating of Class N (exceeding 16 kV) per the Human Body Model Mechanical Characteristics:.
Void Free, Transfer.
Molded, Thermosetting Plastic Case.
C.
